Shortest Paths

      Constellation Action Keyboard Shortcut User Action Menu Icon
      Run Shortest Paths Selection -> Shortest Paths Shortest Paths Icon
      Run Directed Shortest Paths Selection -> Directed Shortest Paths Directed Shortest Paths Icon

      Shortest Paths is an implementation of the Dijkstra shortest paths algorithm. When nodes within the same component are selected, the Shortest Paths function will determine the path(s) with the smallest number of transactions between the selected nodes, and highlight the nodes and transactions along the path(s).

      Directed Shortest Paths

      Directed Shortest Paths runs in a similar way except it only looks at paths with directed transactions going in the direction of the source node to the destination node. When you select Directed Shortest Paths, a dialog box pops up prompting you to choose which node you have selected is the source node.

      Before Shortest Paths is run:

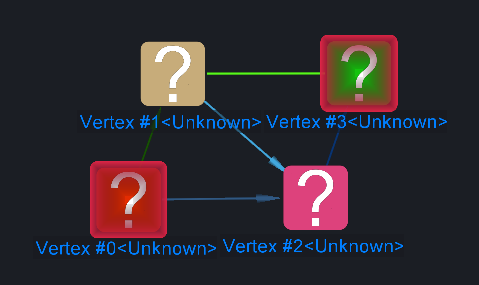

      Graph before Shortest Paths is run

      After Shortest Paths is run:

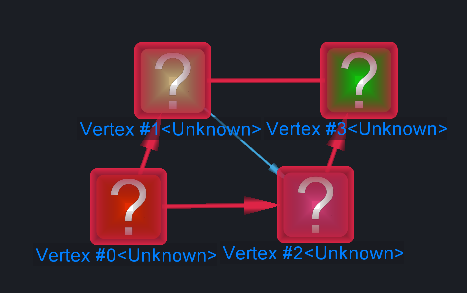

      Graph after Shortest Paths is run

      After Directed Shortest Paths is run (Source Node is Vertex #0):

      Graph after Directed Shortest Paths is run
